The Resurgence of a Trail Benchmark

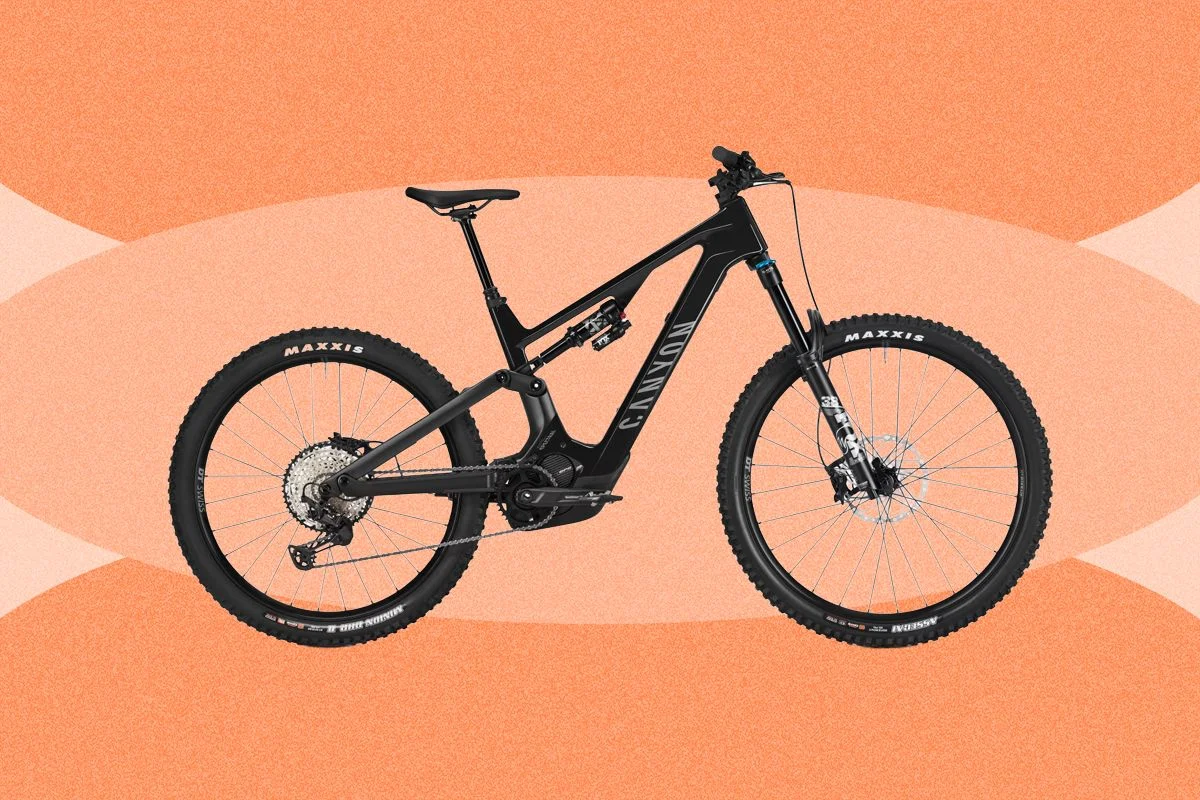

The Canyon Spectral:ON series has long been regarded as a cornerstone of the brand’s electric lineup, designed to balance climbing efficiency with downhill stability. The latest iteration, the CF 8, arrives at a critical juncture for the company. By offering a full-power, carbon-framed e-MTB with high-capacity energy storage for significantly less than the industry average, Canyon is leveraging its direct-sales model to challenge the dominance of brands like Specialized, Trek, and Santa Cruz.

While high-end competitors such as the Specialized S-Works Levo 4 can command prices upwards of $15,000, the Spectral:ON CF 8 provides a comparable core specification—85 Nm of torque and a large-capacity battery—for nearly $10,000 less. This pricing strategy highlights the efficiency of the direct-to-consumer (DTC) model, though it necessitates a trade-off in terms of immediate retail support and requires the end-user to perform final assembly.

A Chronology of Challenge and Redesign

The path to the current Spectral:ON CF 8 was marked by a significant setback in late 2024. Canyon was forced to issue a global stop-use and recall notice for previous iterations of the Spectral:ON after reports emerged of cracks developing in the battery casings. The technical concern was that water ingress could lead to short circuits, potentially posing a fire risk. This recall resulted in thousands of bikes being sidelined for months, causing substantial financial strain on the company and damaging consumer confidence.

The 2025 model year represents a comprehensive technical response to these issues. The chronology of the redesign focused on three key areas:

1. Battery Integrity: Moving from the previous 720-Wh and 900-Wh configurations to a newly engineered 800-Wh aluminum-housed unit.
2. Safety Standards: Achieving an IP57 rating for the battery to ensure superior resistance to dust and water.
3. Weight Management: Reducing the battery weight by approximately five ounces compared to the previous 900-Wh design while maintaining a high energy density.

Power Systems and Motor Performance

At the heart of the Spectral:ON CF 8 is the Shimano EP801 mid-drive motor. Weighing 5.7 pounds, this drive unit delivers a peak power output of 600 watts and 85 Nm of torque. While the EP801 was a benchmark upon its release in 2022, the e-MTB landscape has since become more crowded with high-torque alternatives.

For context, current market leaders in power delivery include:

• Bosch Performance Line CX (Gen 5): Offers up to 100 Nm of torque and 750 watts of peak power.
• Specialized Turbo Full Power 3.2: Delivers 111 Nm of torque and peaks at 850 watts.
• DJI Avinox: A new entrant providing a category-leading 120 Nm of torque and 1,000-watt peak power.

Despite these figures, the Shimano EP801 remains a preferred choice for riders seeking a natural pedaling feel. Its power delivery is characterized by smoothness across various cadences, avoiding the jerky surges often associated with higher-torque motors. This makes the CF 8 particularly accessible for intermediate riders who require predictable assistance during technical ascents.

The 800-Wh Battery: Safety Meets Endurance

The most critical update in the CF 8 is the 800-Wh battery. Beyond the improved safety of the aluminum housing, Canyon has reimagined the battery’s placement within the frame. Unlike many competitors that mount batteries vertically, Canyon has opted for a low, horizontal orientation within the down tube.

This engineering choice serves two purposes. Visually, it allows for a slimmer down tube profile, masking the bike’s electric nature. More importantly, it lowers the center of gravity. By concentrating the 10-pound, 4-ounce battery weight closer to the bottom bracket, Canyon has improved the bike’s stability when cornering and navigating high-speed descents.

Data from field testing suggests the 800-Wh capacity translates to approximately 53 miles of range or over 6,200 feet of vertical climbing on a single charge, depending on rider weight and terrain. Charging efficiency has also been improved, with the system capable of reaching an 80% charge in approximately two hours.

Geometry, Handling, and Mullet Dynamics

The Spectral:ON CF 8 utilizes a "mullet" wheel setup, featuring a 29-inch wheel in the front for rollover capability and a 27.5-inch wheel in the rear for agility. This configuration is intended to provide the best of both worlds: the front wheel tracks accurately through rock gardens and over roots, while the smaller rear wheel allows for tighter turns and easier manualing.

With a 64-degree head tube angle, the geometry is decidedly "slack," a trend in modern mountain biking that favors stability on steep declines. While the bike’s total weight of 54.5 pounds makes it a "heavyweight" even among full-power e-bikes, the geometry and low center of gravity mitigate this bulk once the bike is in motion. However, technical maneuvers at low speeds and manual handling—such as lifting the bike onto a vehicle rack or pushing it up unrideable inclines—remain physically demanding.

Componentry and Build Quality

To achieve the sub-$4,500 price point without sacrificing performance, Canyon has selected a "workhorse" component group. This includes:

• Drivetrain: A mix of Shimano XT and SLX components, known for reliability under the high-torque loads of electric motors.
• Suspension: A FOX 38 Rhythm fork with 160 mm of travel and a FOX Float X rear shock providing 155 mm of travel. This setup is designed to handle aggressive trail riding and "enduro-lite" terrain.
• Braking: Shimano XT hydraulic disc brakes, which provide the necessary stopping power for a 54-pound machine plus rider.
• Wheels/Tires: DT Swiss HLN350 wheels paired with e-MTB-specific tires designed for durability and traction.

One notable inclusion is Canyon’s in-house Iridium dropper post. While functional and reliable, testers have noted a slower return speed compared to premium aftermarket options like the Fox Transfer or RockShox Reverb.

The Direct-to-Consumer Paradigm and Service Realities

Canyon’s ability to offer a full-carbon e-MTB at this price is a direct result of its business model, which eliminates the markup associated with traditional brick-and-mortar retailers. However, this model places additional responsibility on the consumer.

The bike arrives in a "BikeGuard" box, requiring approximately 35 to 45 minutes of assembly. Canyon includes a basic torque wrench and a suspension pump to facilitate this process. While the brand provides high-quality instructional videos, the lack of a local dealer for initial fitment and tuning remains a barrier for some buyers.

To address long-standing criticisms regarding after-sales support, Canyon has recently expanded its service network. In the United States, this includes a partnership with REI, allowing owners to access professional servicing at many of the retailer’s locations. This move is seen as an essential step in competing with brands that have extensive independent dealer networks.

Market Implications and Broader Impact

The release of the Spectral:ON CF 8 is likely to exert downward pressure on e-MTB pricing across the industry. As battery technology stabilizes and motor systems become more modular, the "early adopter" premium that has defined the e-bike market for the last decade is beginning to erode.

Canyon’s aggressive pricing may also be a tactical necessity. Following the 2024 recall, the brand needed a "hero product" to restore its reputation for value and engineering prowess. By pricing the CF 8 so competitively, Canyon is effectively buying back market share and rewarding customer loyalty.

In conclusion, the Canyon Spectral:ON CF 8 stands as a formidable entry in the trail e-MTB category. It successfully balances high-capacity energy storage with a sophisticated carbon frame and a proven motor system. While its weight and the inherent challenges of the direct-to-consumer model remain considerations, its value proposition is currently unmatched in the mainstream market. For riders prioritizing range and build quality over brand-name retail presence, the CF 8 represents a new benchmark for what is achievable under the $5,000 threshold.
